Detailed Product Description
| Phase: | Three Phase | Pump Controlled Quantity: | One Pump |
|---|---|---|---|
| Enclosure Protection Grade: | IP22 | Install Position: | Wall Mounting |
| Displaying: | LCD Display | Trip Voltage Of Over Voltage: | 437V |
| Trip Voltage Of Under Voltage: | 301V |

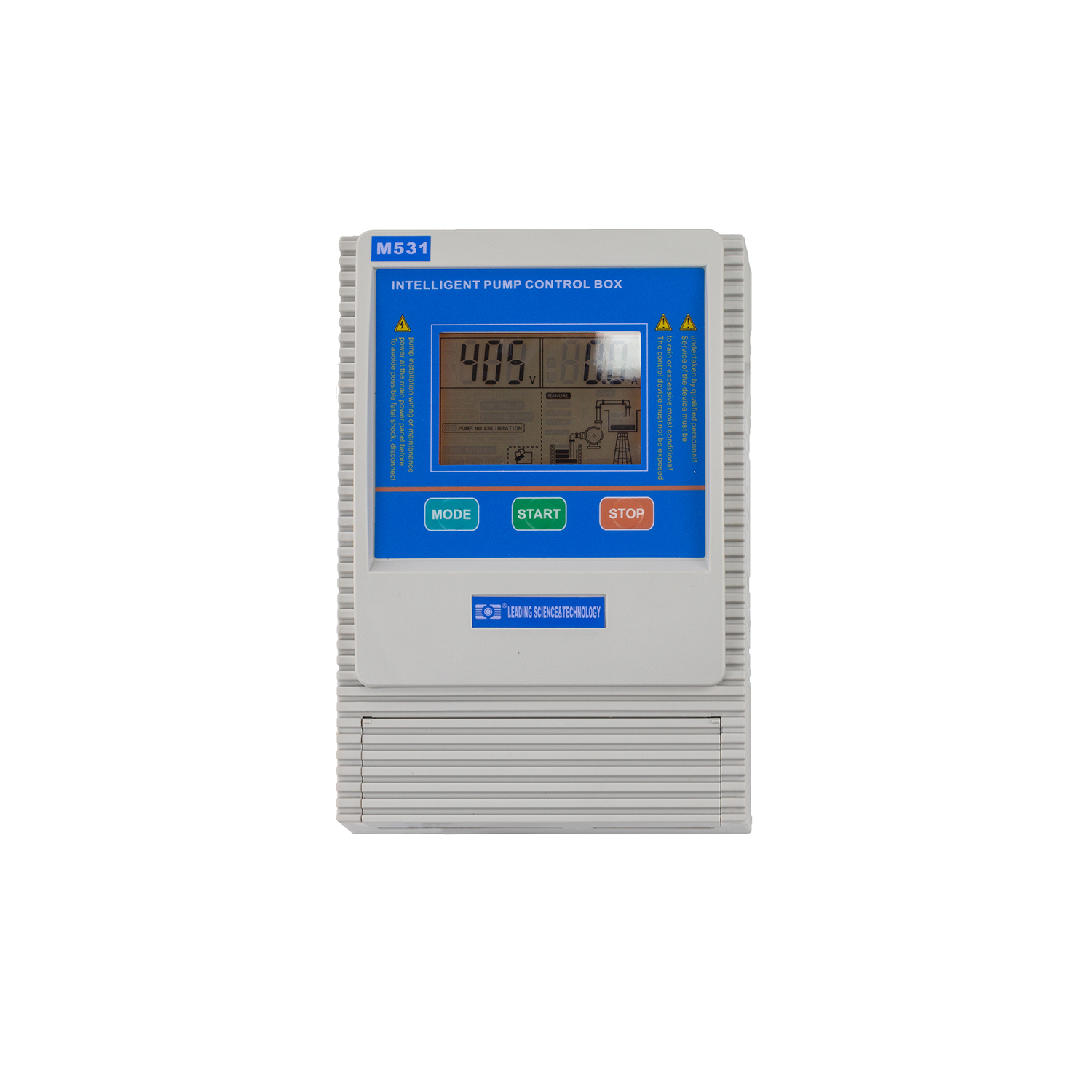

Intelligent Three Phase Water Pump Controller – Auto/Manul
1. Products Info
Model M531 is useful in all cases we need to control and protect single pump managing its turn-on and turn off by different electric installations.
Typical usage scenarios include:
-Houses
-Flats
-Holidays houses
-Farms
-Water supply from wells
-Irrigations of greenhouses, gardens, agriculture
-Rain water reuse
-Industrial plants
-Waste water tank / Sewage sink
| Model | M531 |
| Main technical data | |
| Start type | Direct on line |
| Qty of controlled pump | Single pump |
| Rated input voltage: | AC380V Three phase
50HZ/ 60HZ |
| Rated output power: | 0.75kw-4kw (1hp-5.5hp),5.5kw-7.5kw (7.5hp-10hp) |
| Capacitor: | N/M |
| Protection Offered: | Over load protection Pump stalled protection Dry run protection with sensor free Under voltage protection Over voltage protection Open phase protection |
| Application & Control characteristic |
Control and protect universal pump Using water level sensor or float switch to control pump start and stop Applied for water supply by liquid level control through float switch or liquid probe Applied for water supply by pressure control through pressure switch and pressure tank Applied for drainage by liquid level control through float switch or liquid probe |
| Other features | Push button calibration Memory function when power off & recovery Interactive LCD Screen  |
| Main installation data | |
| Working temperature Working humidity Degree of protection Install position Unit dimension (L x W x H) |
-25℃– +55℃ 20%–90%RH, no drips concreted IP22 Wall mounting 160× 82× 228mm |
