Detailed Product Description
Start Type: | Direct On Line (DOL) | Input Voltage: | AC380V, 50HZ, Three Phase |
---|---|---|---|
Output Power: | 1hp-20hp | Qty Of Controll: | Duplex Pump Control |
Pressure Transmitter: | 0.5-4.5V Pressure Transmitter, Analog Signal Output | Pressure Value Setting & Displaying: | Press Button And LCD Displaying Dynamic Pressure Value |
After-Sale Service: | Available Modularized PCB Board | BMS System: | Available Dry Contact Point For BMS (Building Management System ) |
RS 485: | Available RS485 Port | OEM: | Available |
DUPLEX INTELLIGENT PUMP CONTROL PANEL FOR PRESSURE BOOSTING PUMP, WITH THREE PHASE, AC380V/50HZ

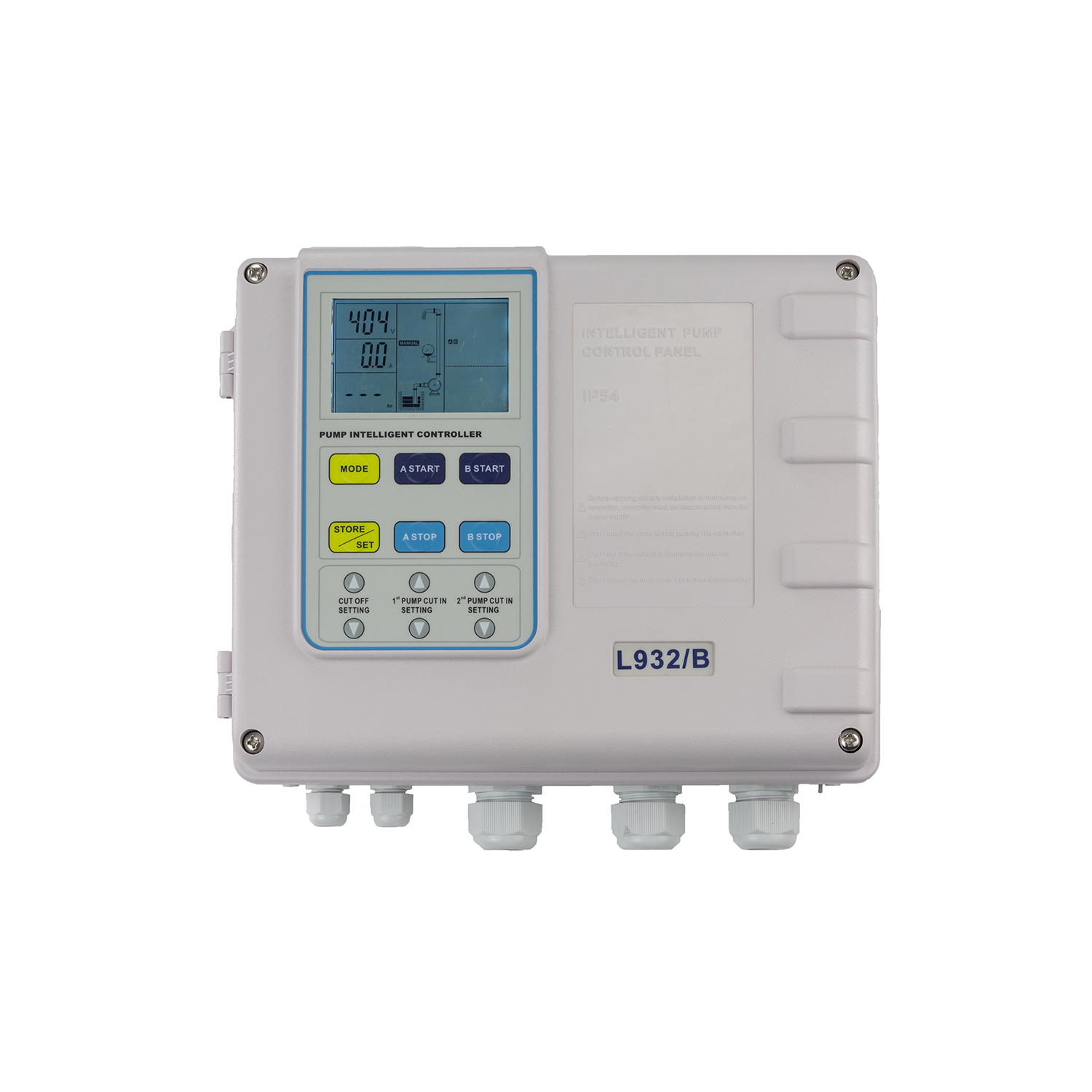

Model L932-B
Model L932-B is specially designed for duplex pressure booster pumping system, by adoption of pressure transmitter (0.5-4.5V), pump user can easily set the different pressure value and observe the dynamic pressure value in the pipeline.
Typical usage scenarios include:
-Houses
-Flats
-Holidays houses
-Farms
-Water supply from wells
-Irrigations of greenhouses, gardens, agriculture
-Rain water reuse
-Industrial plants
-Construction site
Application & Control characteristic:
Connecting 0.5-4.5V pressure transmitter to replace pressure switch
Pump start and stop according to different pressure value setting
Duplex pump control
• Main pump / standby pump automatically alternate
• Main pump / standby pump automatically switch against malfunction
• Standby pump participate running if more pressure required
Main technical data:
• Start type: Direct on line (DOL)
• Qty of controller pump: single pump
• Rated input voltage : AC380V, Three phase 50HZ/ 60HZ
• Rated output power : 0. 75kw-4kw (1 hp-5. 5hp) – 5. 5kw-11kw (7.5hp-15hp) – 15kw (20hp)
Max Motor Output at 380V 3Ph |
Relay Max Range(A) |
|
HP | KW | 12A |
1.0 | 0.75 | |
1.5 | 1.1 | |
2.2 | 1.5 | |
3.0 | 2.2 | |
5.0 | 3.7 | |
5.5 | 4 | |
7.5 | 5.5 | 25A |
10.0 | 7.5 | |
15.0 | 11 | |
20.0 | 15 | 32A |
Product function
• Over load protection
• Pump stalled protection
• Dry run protection with sensor free
• Under voltage protection
• Over voltage protection
• Rapid cycle protection
• Open phase protection
• Phase reversal protection
• Three phase unbalance protection
Product feature
• Pump start and stop pressure value can be easily setting on the LCD screen
• Pump last five faults record displaying
• Pump accumulative running time displaying
• Presenting one dry contact point (BA port) for BMS system
• Present RS485 port (A+ / B-)
• Remote monitor available (at option)
Main installation data
• Working temperature: -25℃– +55℃
• Working humidity: 20%–90%RH, no drips concreted
• Degree of protection: IP54
• Install position: Wall mounting
• Unit dimension (L x W x H): 302 x 240x 1 20mm
